| 内转子风机用于变频电机散热 |
|
◎FYG概述
◎100 125FYG
◎150 160FYG
◎200 250 315FYG |

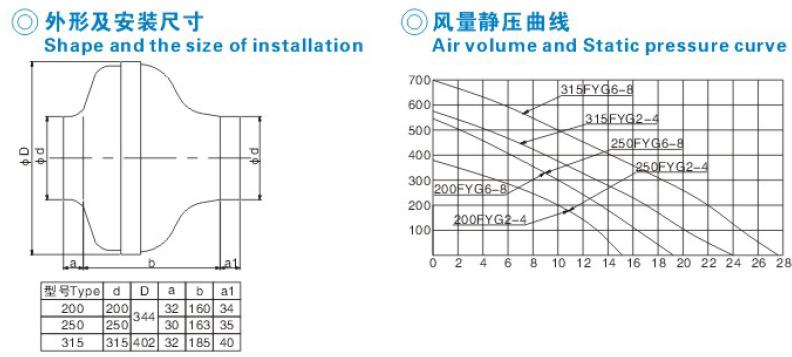

200 250 315FYG
性能参数
|
型号规格 |
电压V |
相数 |
频率Hz |
输入电流A |
输入功率W |
转速r/min |
风量m3/min |
静压Pa |
噪声dB(A) |
电容µFN |
重量kg |
接线图 |
|
200FYG2-2 |
220 |
1 |
50 |
0.51 |
115 |
2500 |
15 |
380 |
54 |
4.0/500 |
4.6 |
A |
|
200FYG3-2 |
380 |
3 |
50 |
0.30 |
115 |
2500 |
15 |
380 |
54 |
/ |
4.6 |
C |
|
200FYG4-2 |
220 |
1 |
50 |
0.35 |
115 |
2500 |
15 |
380 |
54 |
1.0/630 |
4.6 |
B |
|
200FYG6-2 |
220 |
1 |
50 |
0.71 |
165 |
2500 |
19 |
560 |
55 |
4.0/500 |
5.1 |
A |
|
200FYG7-2 |
380 |
3 |
50 |
0.41 |
165 |
2500 |
19 |
560 |
55 |
/ |
5.1 |
C |
|
200FYG8-2 |
220 |
1 |
50 |
0.45 |
165 |
2500 |
19 |
560 |
55 |
1.0/630 |
5.1 |
B |
|
250FYG2-2 |
220 |
1 |
50 |
0.50 |
115 |
2500 |
15 |
380 |
54 |
4.0/500 |
4.6 |
A |
|
250FYG3-2 |
380 |
3 |
50 |
0.30 |
115 |
2500 |
15 |
380 |
54 |
/ |
4.6 |
C |
|
250FYG4-2 |
220 |
1 |
50 |
0.35 |
115 |
2500 |
15 |
380 |
54 |
1.0/630 |
4.6 |
B |
|
250FYG6-2 |
220 |
1 |
50 |
0.81 |
185 |
2500 |
19 |
550 |
56 |
5.0/500 |
5.3 |
A |
|
250FYG7-2 |
380 |
3 |
50 |
0.48 |
185 |
2500 |
19 |
550 |
56 |
/ |
5.3 |
C |
|
250FYG8-2 |
220 |
1 |
50 |
0.55 |
185 |
2500 |
19 |
550 |
56 |
1.2/630 |
5.3 |
B |
|
315FYG2-2 |
220 |
1 |
50 |
0.84 |
190 |
2500 |
24 |
580 |
54 |
5.0/500 |
6.1 |
A |
|
315FYG3-2 |
380 |
3 |
50 |
0.50 |
190 |
2500 |
24 |
580 |
54 |
/ |
6.1 |
C |
|
315FYG4-2 |
220 |
1 |
50 |
0.55 |
190 |
2500 |
24 |
580 |
54 |
1.2/630 |
6.1 |
B |
|
315FYG6-2 |
220 |
1 |
50 |
1.20 |
274 |
2500 |
27 |
710 |
57 |
0.8/500 |
6.5 |
A |
|
315FYG7-2 |
380 |
3 |
50 |
0.70 |
274 |
2500 |
27 |
710 |
57 |
/ |
6.5 |
C |
|
315FYG8-2 |
220 |
1 |
50 |
0.75 |
274 |
2500 |
27 |
710 |
57 |
2.0/630 |
6.5 |
B |
|
|
|
| |
|
|
